  1. Integration Flows

Purchase Orders

Learn about purchase order sync from NetSuite to HotWax Commerce.

PreviousCycle CountNextDeployment

Last updated 3 months ago

Was this helpful?

Accurate inventory availability in physical stores is important for omnichannel retail. For retailers using NetSuite as their ERP and HotWax Commerce as their Order Management System, integration is key to synchronizing Purchase Orders (POs) from NetSuite with HotWax Commerce. This synchronization enables store associates to receive and manage inventory using HotWax Commerce's user-friendly in-store inventory management tools.

When a PO is raised in NetSuite, it syncs with HotWax Commerce, allowing store associates to receive inventory through the provided by HotWax Commerce.

Key Objectives

  • Automate the synchronization of POs from NetSuite to HotWax Commerce.

  • Streamline the creation of Item Receipt records in HotWax Commerce when store associates receive inventory.

  • Automate the update of Purchase Order statuses from "Pending" to "Received" in NetSuite once items are received in HotWax Commerce.

Workflow

Generate Purchase Orders in NetSuite

The procurement process begins in the NetSuite ERP, where POs are generated to replenish inventory in physical stores.

Export Purchase Orders from NetSuite

  1. A Map Reduce script initiates the synchronization process by running a Saved Search to identify POs with a "Pending" status in NetSuite. The script compiles the relevant PO data into a CSV file and places it in an SFTP location. This process runs at regular intervals, every 15 minutes, fetching only the latest pending POs. The script is designed to reduce data transfer and processing, maintaining efficient synchronization.

SuiteScript

Create a file of open purchase orders

HC_MR_ExportedPurchaseOrderCSV

SFTP Locations

/home/{sftp-username}/netsuite/purchaseorder/fulfillment

Import Purchase Orders into HotWax Commerce

  1. A scheduled job within HotWax Commerce OMS monitors the SFTP location, periodically checking for new Purchase Order CSV files. The job uses the robust APIs provided by HotWax Commerce's Export/Import tools to import these Purchase Orders.

Job in HotWax Commerce

Import purchase orders
IMP_ASN_PO_FEED

Here's how Purchase Order fields are mapped in NetSuite and HotWax Commerce

S.No.
Fields in NetSuite
Fields in HotWax Commerce

1

Purchase Order Internal ID

External ID

2

Item

SKU

3

Quantity

Qty

4

Location

Facility

5

Expected Receipt Date

Estimated Delivery Date

Here's how Purchase Order fields are mapped in NetSuite and HotWax Commerce that remain hidden in the user interface but are included in the Purchase Order CSV file

S.No.
Fields in NetSuite
Fields in HotWax Commerce

1

Line ID

Order Item External ID

Receiving Inventory in the Store

Once POs are synchronized, store associates use the HotWax Commerce's Receiving App to receive new inventory. The app's interface simplifies the receiving process, allowing associates to manage inventory with ease, even with minimal training.

After store associates receive POs from app, Item Receipt records are created in HotWax Commerce. These records update inventory counts, making the newly received stock available for sale on eCommerce platforms.

HotWax's Receiving App helps store associates manage in-store receiving discrepancies. The app allows over receiving, under receiving as well as provides an option to receive unexpected items in a PO. The operations team can also track and manage discrepancies using the reports available on HotWax’s BI Reports & Analytics platform.

Export Item Receipts from HotWax Commerce

  1. A scheduled job in the HotWax Commerce Integration Platform exports Item Receipt records created in the system back to NetSuite. Each Item Receipt is linked to its corresponding PO, enabling accurate reconciliation and processing. The job runs at defined intervals, based on the retailer's requirements, and compiles Item Receipt data into a JSON file with all relevant details.

Internal location where HotWax places CSV to convert it to NetSuite format.

SFTP Locations

/home/{sftp-username}/hotwax/PurchaseOrdersReceipt
/home/{sftp-username}/hotwax/PurchaseOrdersReceipt/archive

To facilitate the subsequent processing of this data, the JSON file is securely placed in an SFTP location, making it accessible for NetSuite.

SFTP Locations

/home/{sftp-username}/netsuite/purchaseorder/receipt

Import Item Receipts into NetSuite

  1. A scheduled script in NetSuite retrieves JSON files with Item Receipt data from the SFTP location. The script processes each record, creates new Item Receipt records, and updates inventory counts in NetSuite. Since NetSuite's CSV import task does not support Item Receipt records, the N/record module is used to import the data using JSON files.

Automated Purchase Order Status Update

After Item Receipt records are created, the status of the corresponding POs in NetSuite is automatically updated from "Pending" to "Received." This automated status change enables accurate tracking of received inventory and streamlines purchase order management.

SuiteScript

HC_SC_ImportPurchaseOrderReceipts

The HC_SC_ImportPurchaseOrderReceipts SuiteScript also generates a CSV file highlighting erroneous records found during processing and uploads the file to the SFTP server. Simultaneously, an email alert is automatically triggered to designated personnel, helping them quickly pinpoint the source of the issue and accelerating troubleshooting.

Receiving App
993B
Purchase-Orders-Receipt-Sample-Feed.json
Sample JSON Feed

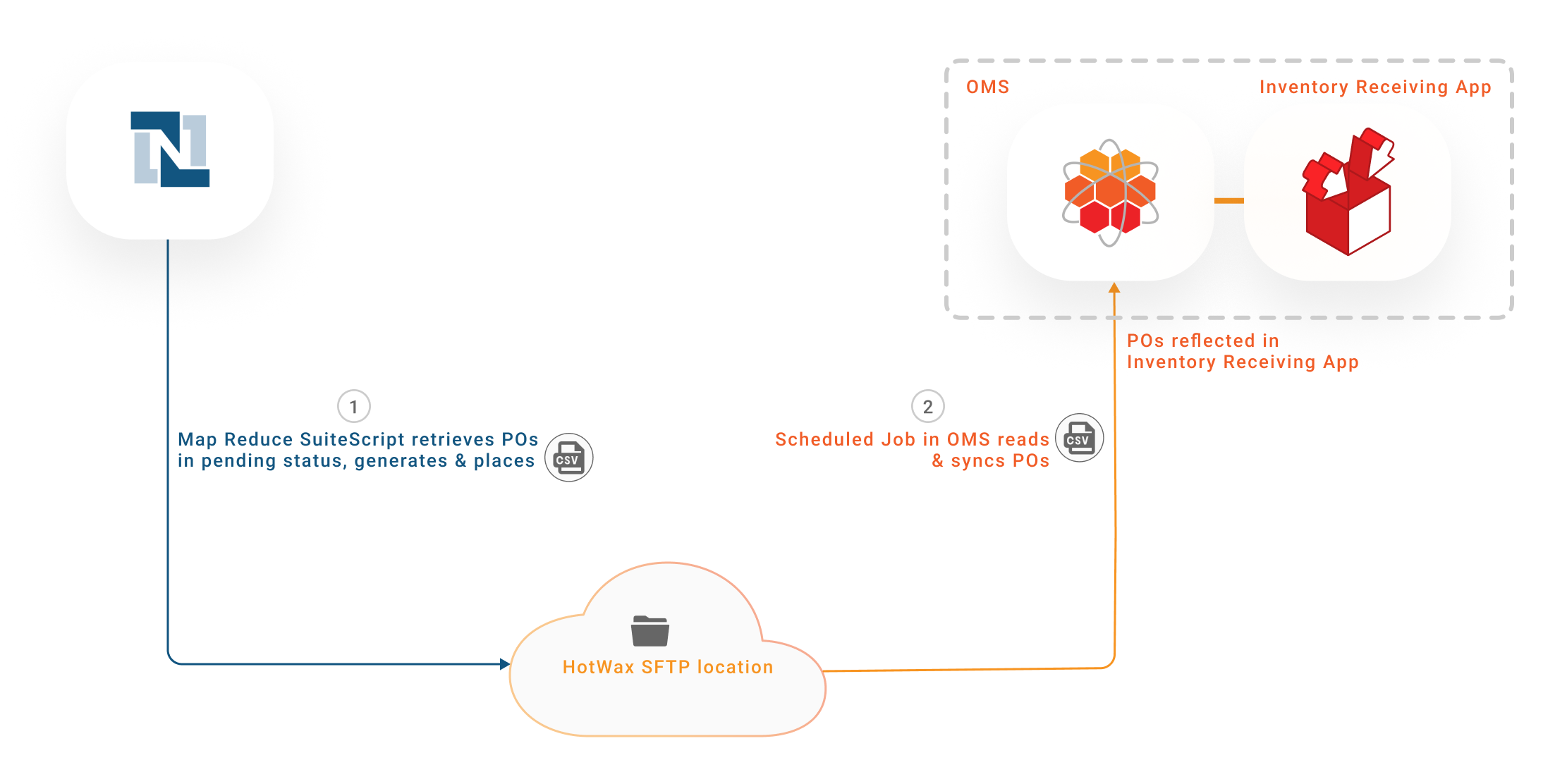

Purchase Order sync from NetSuite to HotWax Commerce

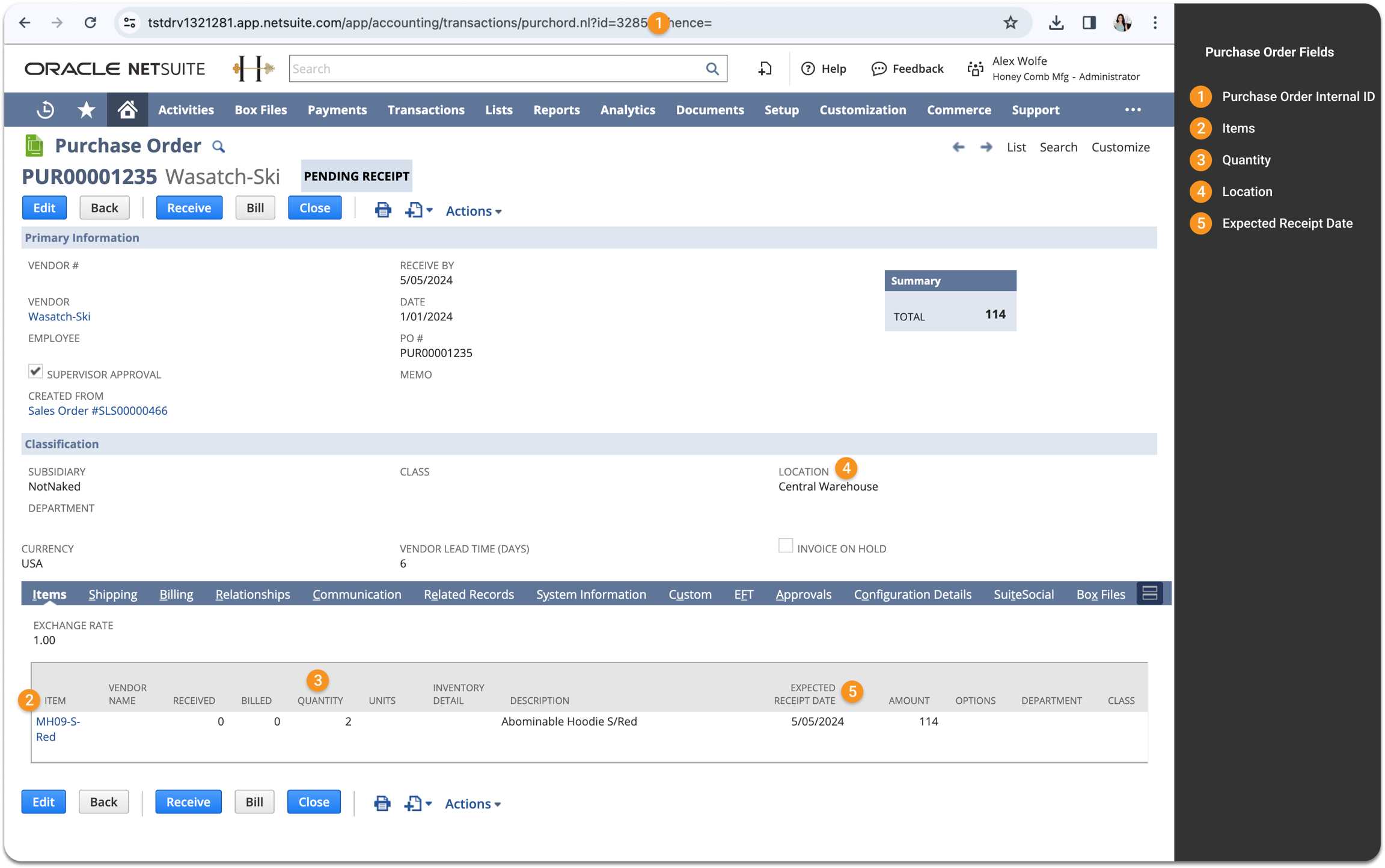

Purchase Order Fields Mapping in NetSuite

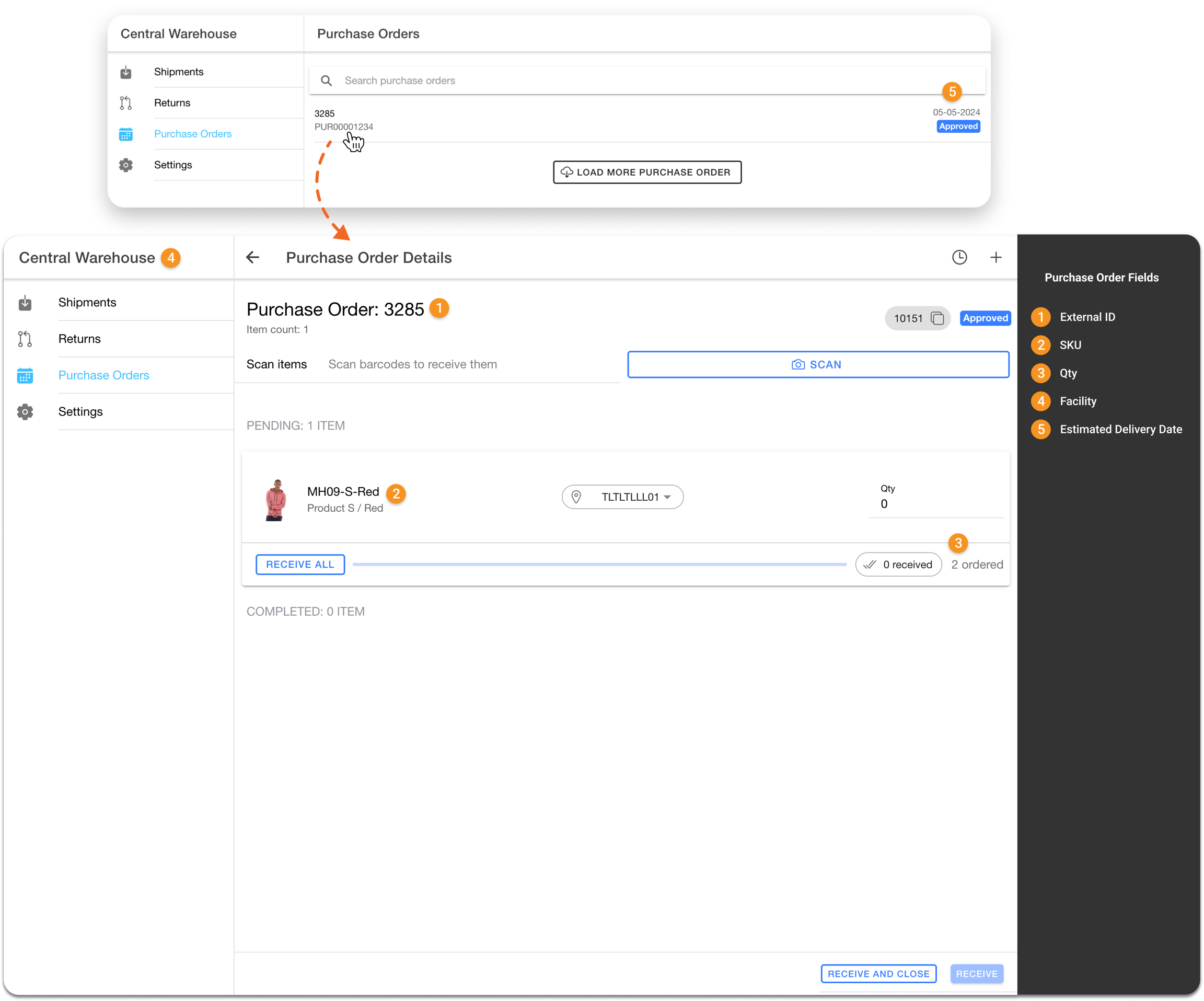

Purchase Order Fields Mapping in HotWax Commerce "Inventory Receiving App"

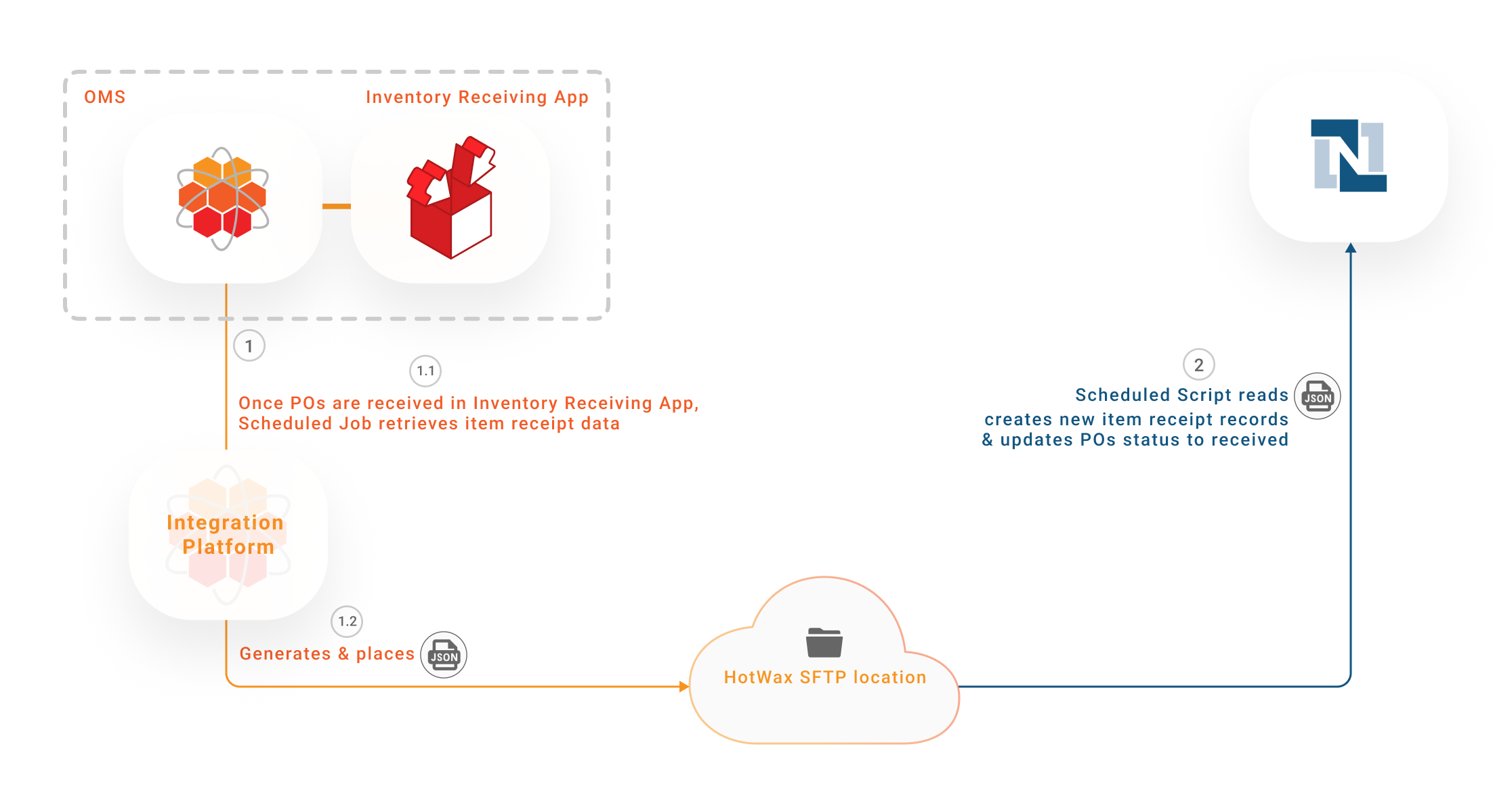

Item Receipts Sync from HotWax Commerce to NetSuite
